Home / Products / Electrical Accessories / Push Button Switch / KA Push Button Switch / latching push button switch 2 pin 1 a 250vac push button normal on push button switch electronic on off switch
Current Rating: 1A
Voltage Rating: 250V AC
Model Number: KAD2-1A-WR-NO
Panel Cutout Dimension: Rectangular-12.5x11.1mm

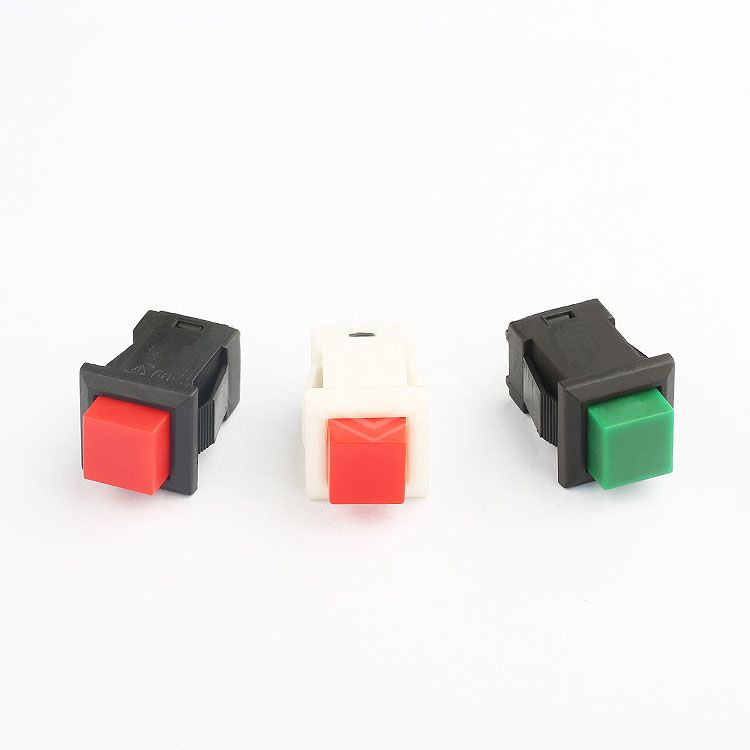

Varity of colors,customization available
Product introduction
Product Description

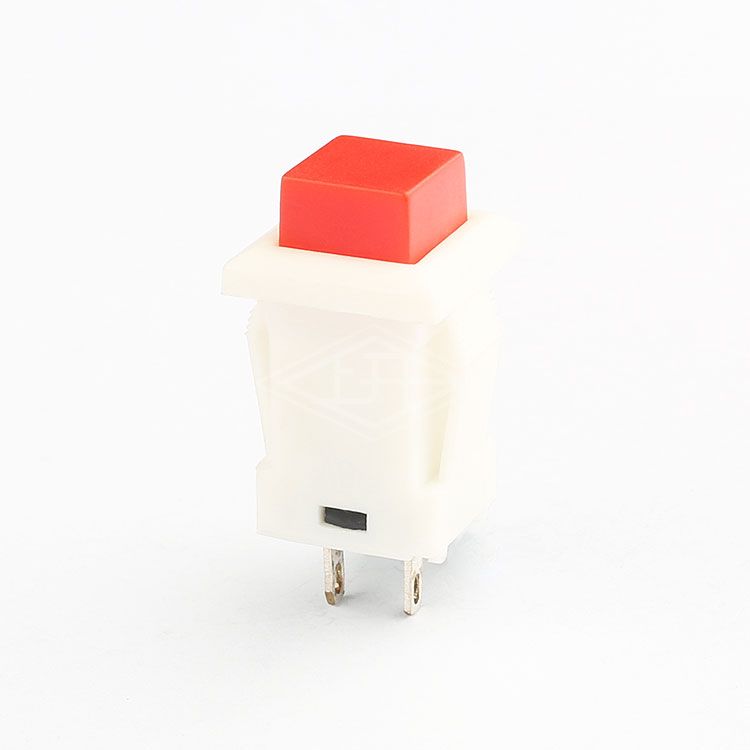

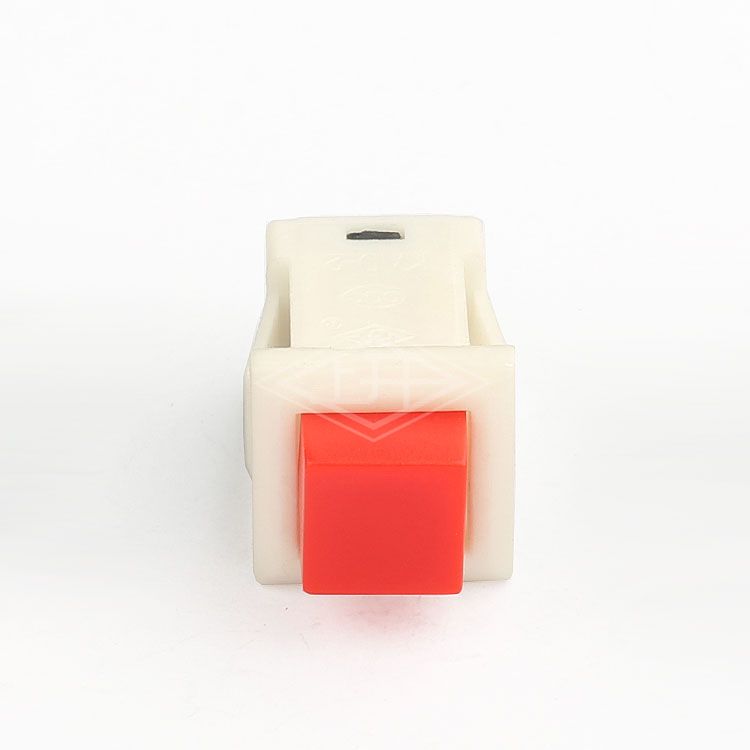

latching push button switch 2 pin 1 a 250vac push button normal on push button switch
| Place of Origin: | Shanghai,China |
| Brand Name | SK(Shangkai) yongxing switch |
| Product Type | KAD2-1A-WR-NO |
| Max.Rating Current | 1A 250V |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | 1500V 1 min |
| Electronic Life | 10,000 cycles |
| Operating Temperature | -25℃~+55℃ |
| IP(ingress protection) | IP40 |
| Certificate | CQC CE ROHS |
Key Feature
High reliability: The high quality and reliability of push-button switches are emphasized, so that users can trust the stability and durability of the product in long-term use.
Sensitive touch: The button switch has a sensitive touch to ensure the accuracy and reaction speed of user operation, and provide a good user experience.
Diversified choices: The emphasis button switch provides a variety of models, sizes, shapes and colors to meet different user needs and application scenarios.
FAQ
1. What is the price of this push-button switch? Are there any wholesale prices or discounts?
The price can vary according to the model, quantity and other factors. Please contact our sales team with your specific needs and we will provide you with a competitive price quote.
We also offer wholesale prices and discounts, specific preferential policies can be discussed with the sales team.
2.If I encounter problems during use, is there technical support or after-sales service?
Yes, we provide comprehensive technical support and after-sales service. If you encounter any problems during use, you can contact our technical support team
at any time and they will be happy to provide you with assistance and solutions. We also offer product warranties to ensure your satisfaction and reliability.
Product Size
