Home / Products / Electrical Accessories / Push Button Switch / KBM Push Button Switch / normal on push button switch 2 pin 13mm button push button switch refrigerator door switch
Current Rating: 2A
Voltage Rating: 250V AC
Model Number: KBM-113-W
Panel Cutout Dimension: Rectangular-36.8x10mm
Varity of colors,customization available
Product introduction

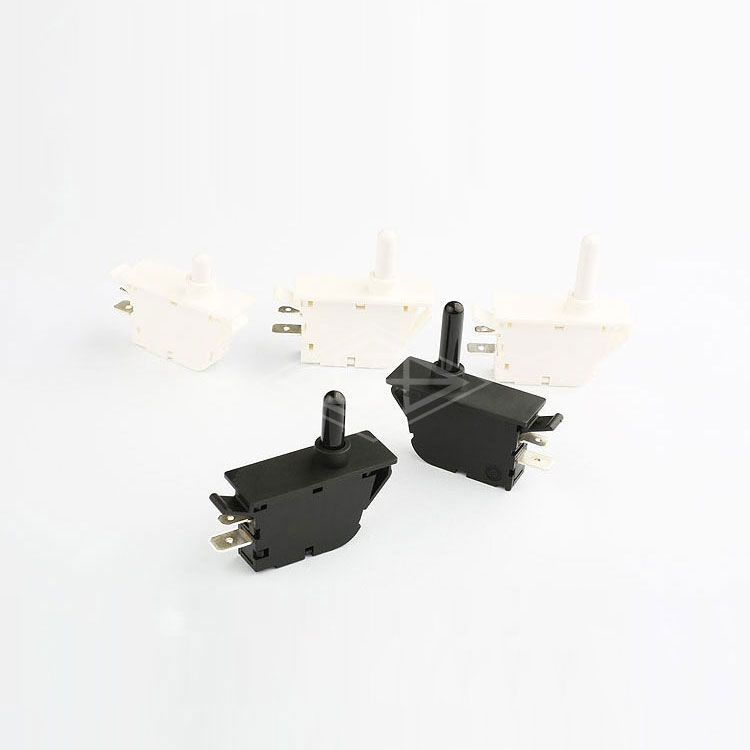

normal on push button switch 2 pin 13mm button push button switch refrigerator door switch
| Place of Origin | Shanghai,China |
| Brand Name | SK(Shangkai) yongxing switch |
| Product Type | KBM-113-W |
| Max.Rating Current | 2A 250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Strength | 1500V |
| Electronic Life | 10,000 cycles |
| Mechanical Life | 50,000 cycles |
| Operating Temperature | -25℃~+55℃ |
| IP(ingress protection) | IP40 |
| Certificate | CQC CE ROHS |
Key Feature
Waterproof design: With waterproof function, it can be used safely and reliably in the refrigerator environment.
Sensitive trigger: sensitive operation, automatically disconnect the circuit when the door is closed, automatically connect the circuit when the door is opened.
Long life: has a long service life, stable and reliable, reduce replacement and maintenance costs.
FAQ
1.How long is the life of this door switch?
Our refrigerator door switches have a long service life, a mechanical life of 50,000 cycles, stable and reliable, reducing replacement and maintenance costs.
2.Which appliances does this switch work with?
Our household appliance switches are suitable for all kinds of household appliances, such as rice cookers, refrigerators, microwave ovens, etc., with a wide range of applications.
Product Size
