Home / Products / Electrical Accessories / Rocker Switch / KCD1 Rocker Switch / KCD1 yellow Arc-shaped actuator 3 pins SPTT rocker switch

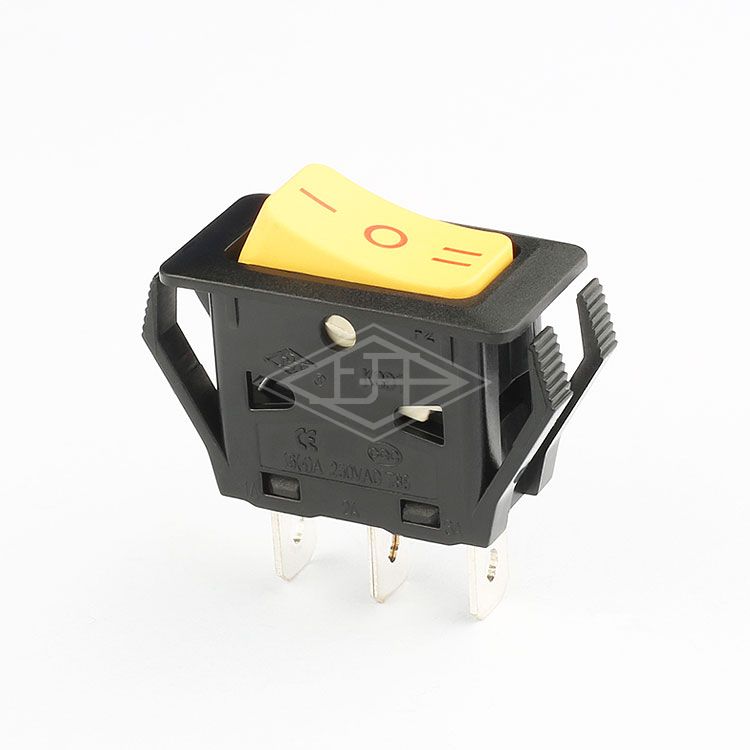

Name：KCD1 yellow Arc-shaped actuator 3 pins SPTT rocker switch
Product Type： KCD1-13-CF2B-B-Y
Max.Rating Current：16(4)A 250V AC
Contact Resistance：≤50mΩ
Insulation Resistance： ≥1000MΩ
Dielectric Strength：1500V AC ,1min
Electronic Life：10,000 cycles
Mechanical Life：50,000 cycles
Operating Temperature：T55,T85,T125
Protection Degree：IP53
Certificate： CE、CQC、UL、CB、ENEC、ROHS
Product introduction
Name：KCD1 yellow Arc-shaped actuator 3 pins SPTT rocker switch
| Product Type | KCD1-13-CF2B-B-Y |
| Max.Rating Current | 16(4)A 250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 1500V AC ,1min |
| Electronic Life | 10,000 cycles |
| Mechanical Life | 50,000 cycles |
| Operating Temperature | T55,T85,T125 |
| Protection Degree | IP53 |
| Certificate | CE、CQC、UL、CB、ENEC、ROHS |
Key Feature
Rocker switch: rocker design, easy to operate, easy to control.
High-quality materials: Durable materials are used to ensure long-term stable operation and reliability.
Sensitive trigger: The operation is sensitive, the rocker is easily triggered, providing fast response.：
FAQ
1.Is this rocker switch waterproof?
Yes, our rocker switches are waterproof and suitable for use in all kinds of harsh environments.
2.How long is the life of this rocker switch?
Our rocker switches have a long service life, are stable and reliable, and reduce replacement and maintenance costs.
3.Does this rocker switch come in other colors?
Yes, our rocker switches may be available in a variety of color options to meet different user preferences and device appearance needs.
Product Size
