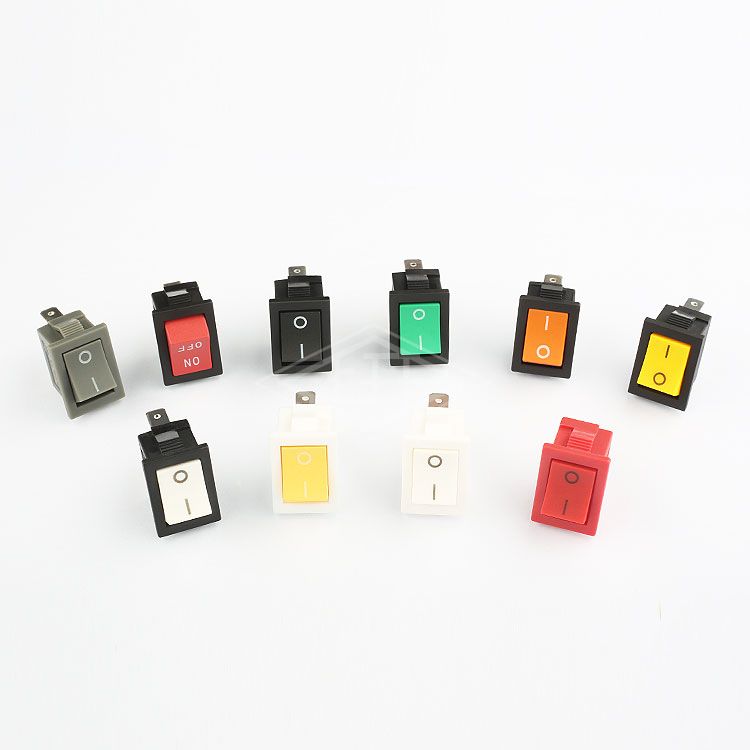

Name:KCD3 CE UL cqc t100/55 250v AC Mini Monmentary Automotive Rocker Switch
Product Type： KCD3-11-FB1B-B-G-01
Max.Rating Current： 10A 250V AC
Contact Resistance： ≤50mΩ
Insulation Resistance： ≥1,000MΩ
Dielectric Strength： 1,500VAC 1min
Electronic Life： 10,000 cycles
Mechanical Life： 50,000 cycles
Operating Temperature：T55,T105
Protection Degree： IP40
Certificate： UL、CE、CQC、CB、ENEC、ROHS
Product introduction
Key Feature
Multiple model options: Provides a variety of models and sizes to meet different scenarios and requirements.
Safe and reliable: in line with relevant safety standards, stable and reliable, to ensure the safe use of users.
Light touch switch: Light touch design, sensitive operation, easy to use.
FAQ
1.Is the Rocker switch easy to use?
Yes, the rocker switch has a light-touch design, which makes it sensitive and easy to use.
2.What does Rocker switch's LED indicator do?
LED indicator can provide visual indication in low light environment, convenient for user operation and identification of switch status.
3.How long is the life of this rocker switch?
Our rocker switch has a long service life with an electrical life of 10,000 times, stable and reliable, reducing replacement and maintenance costs.
Product Size
