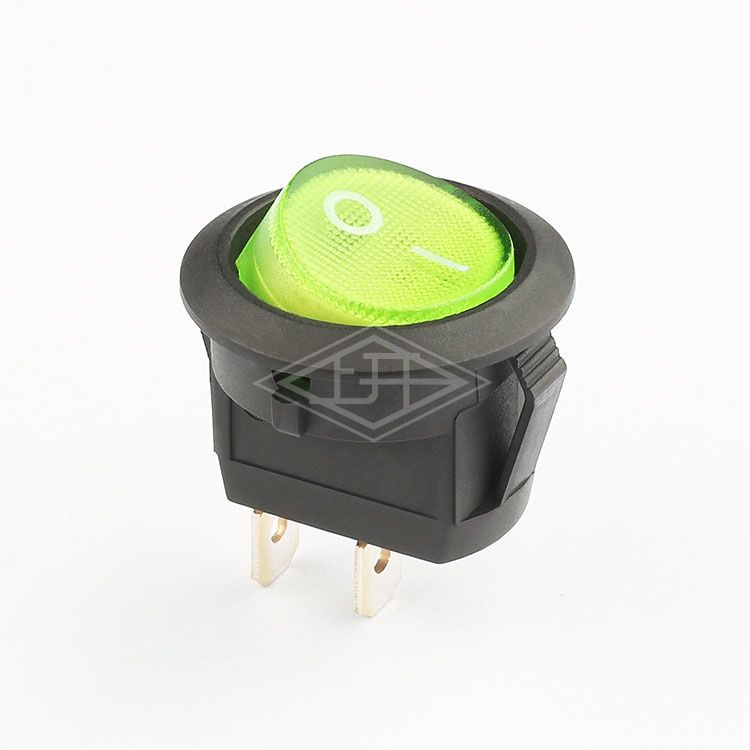

Name：KCD8 3 pins black on off rocker switch
Product Type：KCD8-12-CA2A-B-B
Max.Rating Current：6A 250V AC
Contact Resistance：≤50MΩ
Insulation Resistance：≥1,000MΩ
Dielectric Strength：1,500VAC 1min
Electronic Life：10,000 cycles
Mechanical Life：50,000 cycles
Operating Temperature：T55,T85,T105
Protection Degree：IP40
Certificate：UL、CE、CQC、CB、ENEC、ROHS
Product introduction
