Home / Products / Electrical Accessories / Push Button Switch / KD2 Push Button Switch / 8 pins point led light push button switch latching double pole push button switch 3a 250vac power on off switch push button
Current Rating: 3A
Voltage Rating: 250V AC

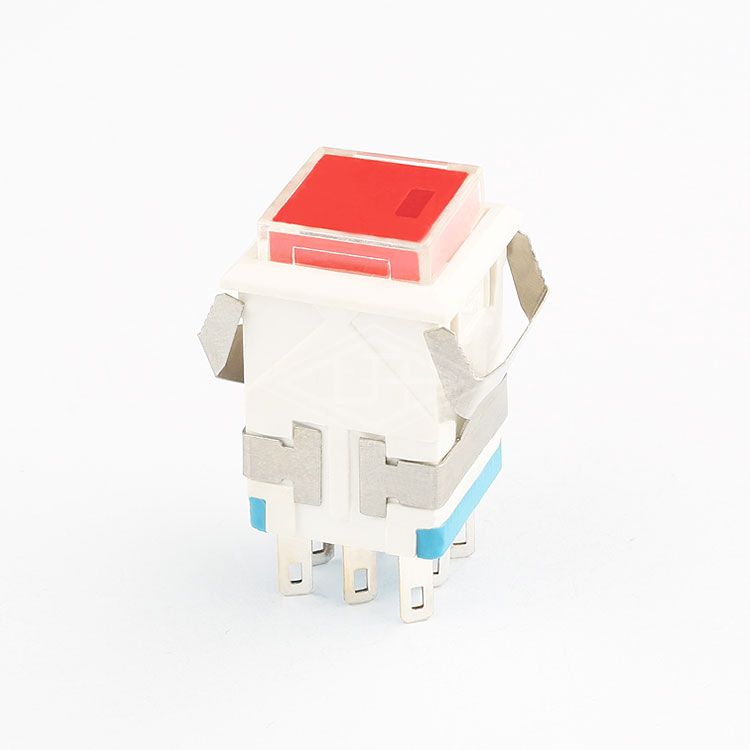

Dot illumination(LED) push button switch
Model Number: KD2-A21L12-WR-R
Panel Cutout Dimension: Square-17x17mm
Varity of colors and lamp voltages,customization available
Product introduction
Product Description
8 pins point led light push button switch latching double pole push button switch 3a 250vac power on off switch push button
| Place of Origin | Shanghai,China |
| Brand Name | SK(Shangkai) yongxing switch |
| Product Type | KD2-A21L12-WR-R |
| Max.Rating Current | 3A 250V |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | 1500V |
| Electronic Life | 10,000 cycles |
| Mechanical Life | 50,000 cycles |
| Operating Temperature | -25℃~+55℃ |
| IP(ingress protection) | IP40 |
| Certificate | CQC CE ROHS |
Key Feature
Cost-effective: We provides excellent performance and quality at a relatively low price and good value for money.
Reliable and durable: It has good durability and stability, and can run stably for a long time without damage.
Wide range of uses: It can be used in the medical industry, such as testers, etc., can also be used in high-definition network monitoring systems, aerospace, automotive dial.
FAQ
1.How to choose the right type of industrial switch?
The selection of industrial switches should consider the working environment of the equipment, the required functions, rated current and voltage requirements and other factors.
Select the appropriate type of operation (instantaneous, locking), material (metal, plastic), waterproof level and installation method according to the specific application requirements.
2.How are illuminated push button switches powered?
Illuminated push button switches are typically powered by low-voltage DC sources, such as 12V or 24V, to illuminate the built-in light source.
The power supply for the illumination is separate from the switching contacts, ensuring that the lighting function can operate independently of the switch's main function.
It is important to ensure that the power supply matches the voltage requirements of the illuminated push button switch to ensure proper functionality and longevity of the LED light source.
Product Size
