Home / Products / Electrical Accessories / Push Button Switch / KD2 Push Button Switch / 8 Pin White IP40 Push on Push off Micro Switch Led Push Button Switch
Current Rating: 3A
Voltage Rating: 250V AC
Model Number: KD2-B21L12-BW-W
Panel Cutout Dimension: Square-17x17mm
Varity of colors and lamp voltage,customization available
Product introduction
Product Description

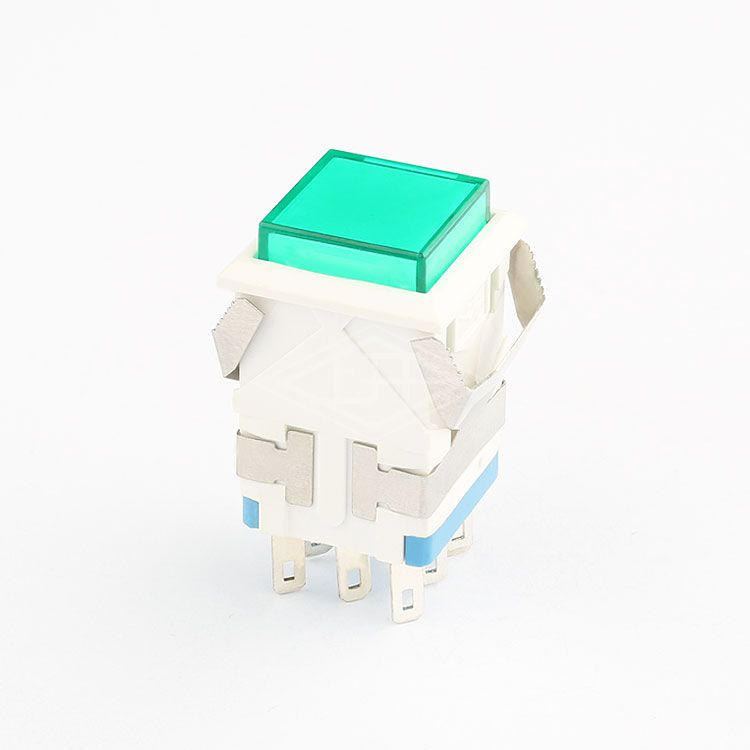

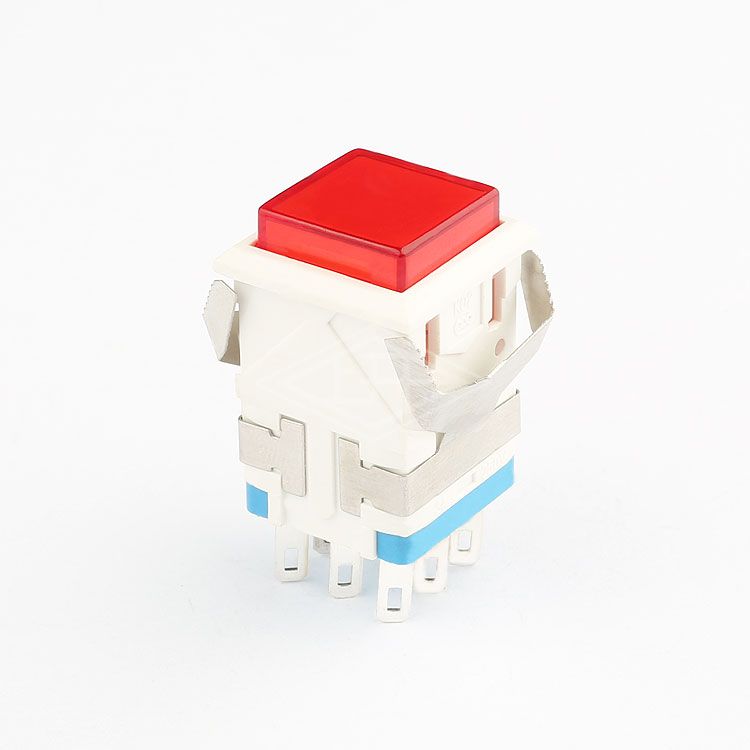

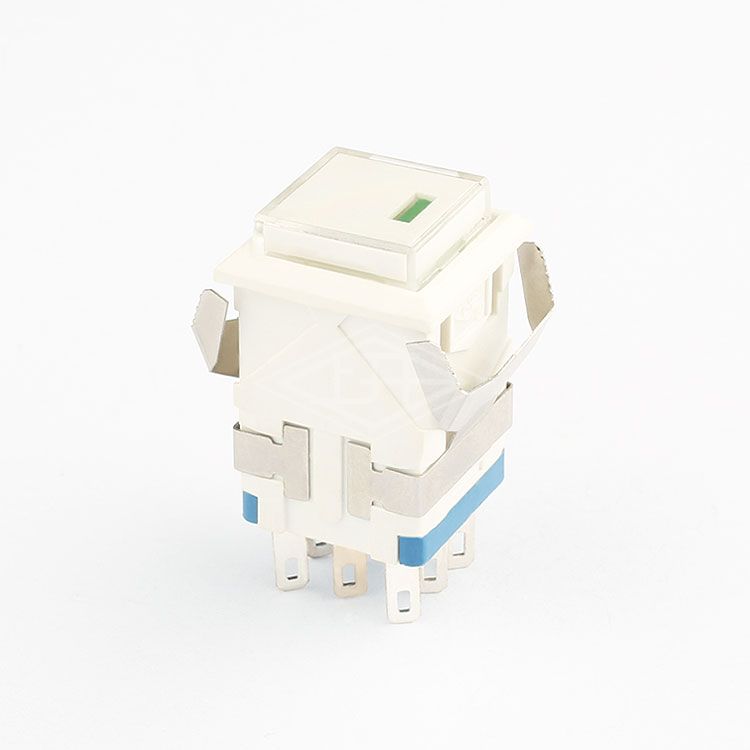

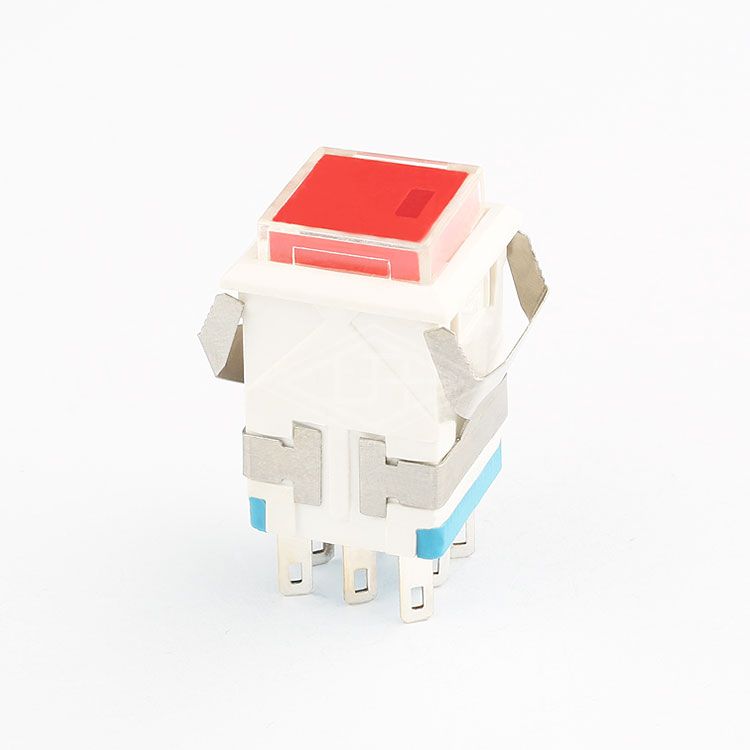

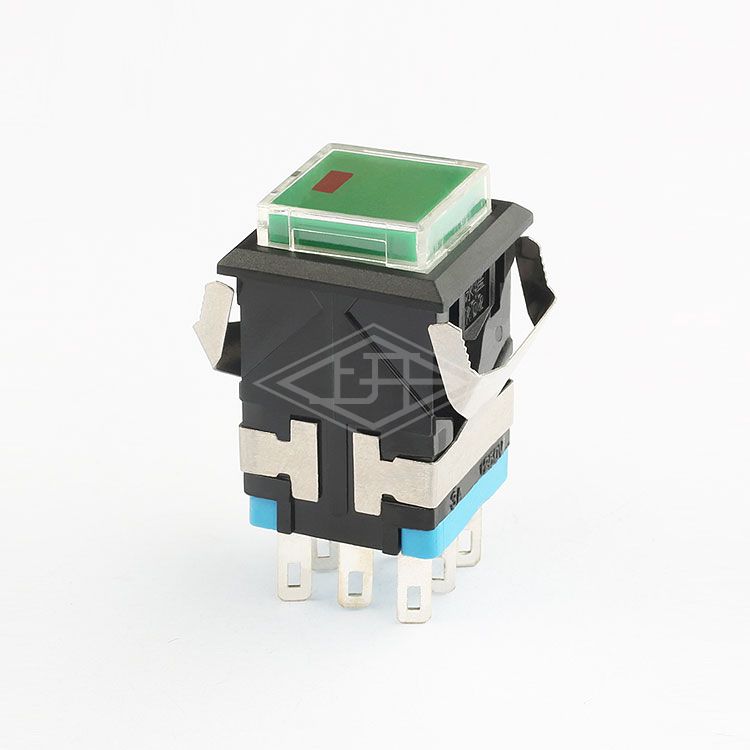

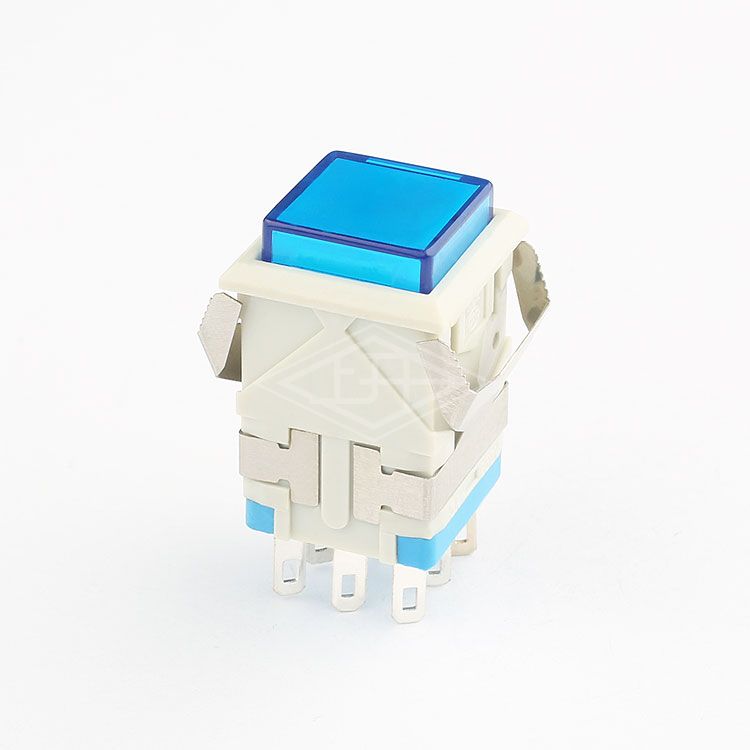

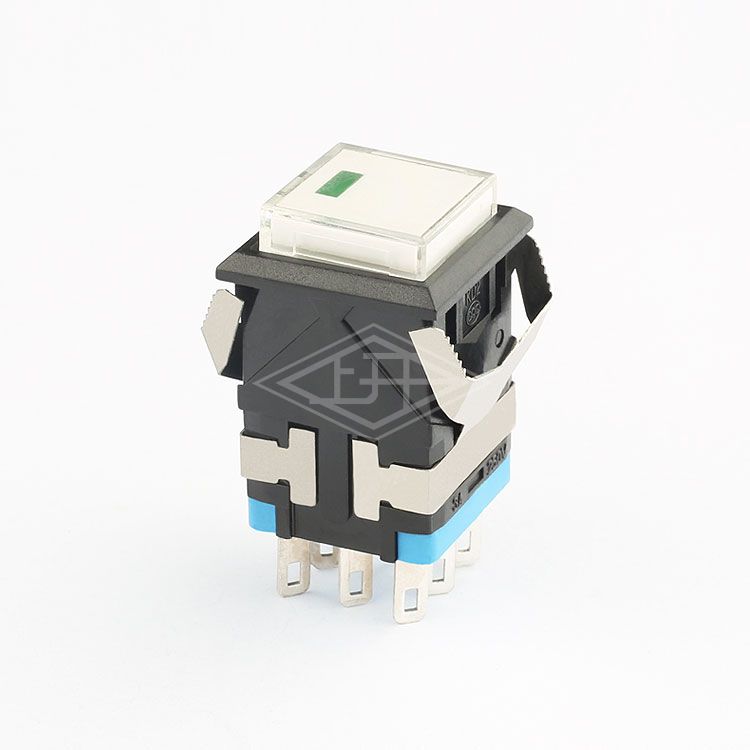

8 Pin White IP40 Push on Push off Micro Switch Led Push Button Switch
| Product Type | KD2-B21L12-BW-W |
| Max.Rating Current | 3A 250V AC |
| Contact Resistance | ≤50MΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | 1,500V |
| Electronic Life | 10,000 cycles |
| Mechanical Life | 50,000 cycles |
| Operating Temperature | -25℃~+55℃ |
| Protection Degree: | IP40 |
| Certificate | CE、CQC、ROHS |
Key Feature
LED indicator: Equipped with bright LED indicator to provide reliable indication of switching status.
Visual indication: LED indicator provides clear visual indication in low light environment and is easy to use.
After-sales protection: Provide after-sales service and limited warranty, users can rest assured to use after purchase.
FAQ
1.Does this switch need regular maintenance?
Under normal circumstances, this product does not require regular maintenance. If there is a blinking light or other abnormal conditions, please check in time to ensure that the connection is normal.
2.What are the functions of this button switch with light?
This product has an on-off function and is equipped with an LED indicator to provide visual indication in low light environments.
3.How are illuminated push button switches powered?
Illuminated push button switches are typically powered by low-voltage DC sources, such as 12V or 24V, to illuminate the built-in light source.
The power supply for the illumination is separate from the switching contacts, ensuring that the lighting function can operate independently of the switch's main function.
It is important to ensure that the power supply matches the voltage requirements of the illuminated push button switch to ensure proper functionality and longevity of the LED light source.
Product Size
